D11 Volvo Power


Download Brochure

D11 Overview

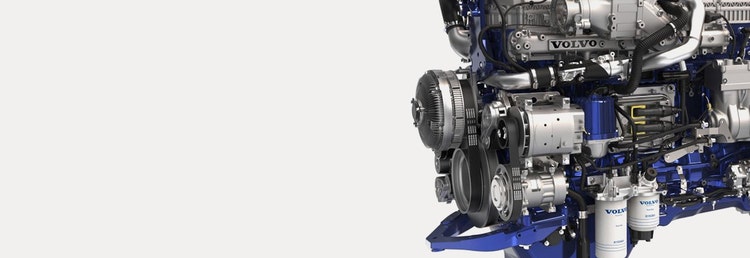

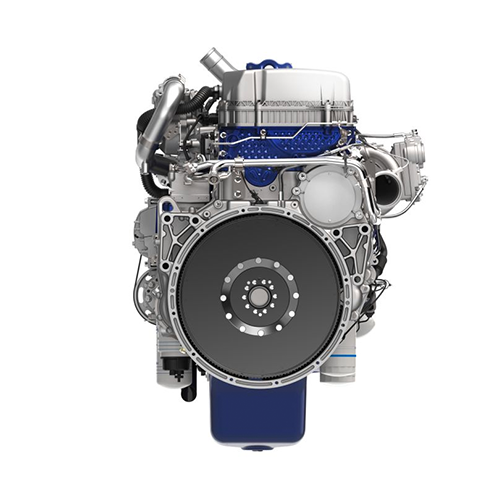

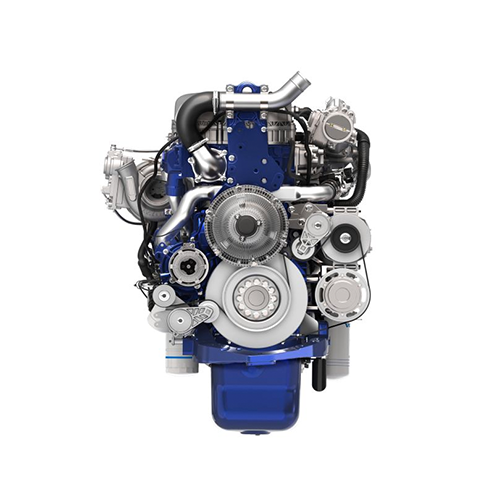

The Volvo D11 is a fuel efficient, lightweight engine designed to improve reliability and minimize cost of operation.

360° VIEW

Performance Specifications

Engine Specifications

Direct Injection Diesel
Bore & Stroke
4.84" x 5.98" [123mm x 152mm]
Compression Ratio
Engine Break Retarding Power
420 HP [372 kW] @ 2200 RPM
Number of Cylinders
6, In-Line
661 [10.8L]
Firing order
Dry Weight (Approx)
2259lbs [1195kg]

More About The D11

Like all of Volvo's engines, the D11 is built on a foundation of proven, developed architecture that leverages innovative hardware to maximize efficiency. Energy that is normally lost is recovered with standard features including low-friction pistons and a two-speed water pump. A standard hybrid common rail fuel injection system gets the most power out of every drop of fuel. Our reliable variable geometry turbocharger compresses and moves the intake air while providing the correct back pressure to drive the EGR process. The D11 delivers performance competitive with larger engines while maximizing fuel economy.

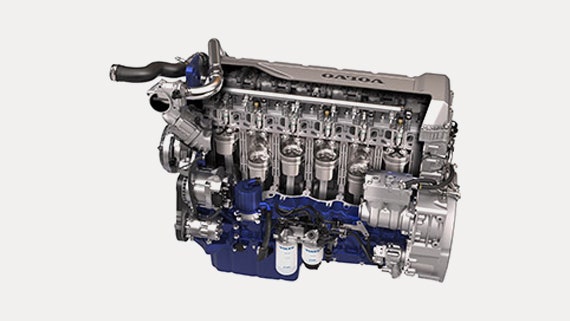

Common-rail fuel injection

The unique design of Volvo’s common-rail fuel system delivers multiple benefits. Finer control allows quicker, more accurate fuel injection for improved fuel efficiency; while a clean installation improves reliability and dramatically reduces engine noise.

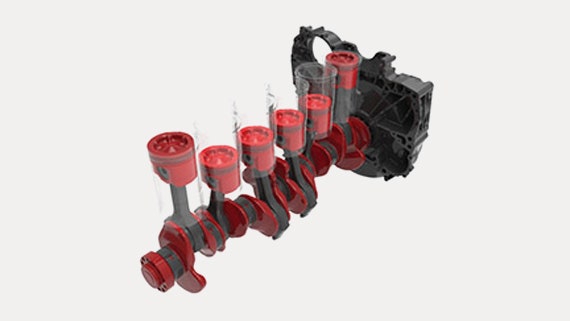

Lower friction, wave piston design

Improved piston skirt finishing reduces friction losses, benefitting power and efficiency. The piston's wave design increases compression to boost efficiency, improving combustion to minimize soot.

Improved Fuel Efficiency

Offering an impressive mix of power, efficiency, and value, all Volvo's engines are OBD 2016-compliant and built on a foundation of proven, developed architecture that leverages innovative hardware to maximize efficiency.

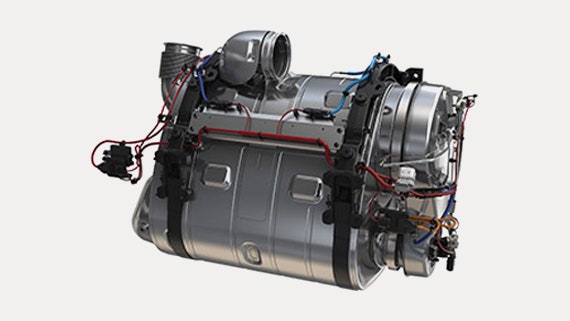

High-Efficiency Aftertreatment

"One-box" aftertreatment system offers smaller packaging and reduces weight by 17 pounds from previous systems. Provides better thermal encasing of exhaust energy, improves muffler efficiency.

Learn More

Faster and Smoother Performance

The Volvo I-Shift makes drivers more productive, always monitoring grade, speed, weight, and engine load, shifting when necessary or holding a gear - whichever saves more fuel.

Explore The I-Shift


Our world-class dealer network with more than 430 locations means your trucks are never far from the quality care and maintenance you expect when you buy a Volvo truck.

Find A Dealer
