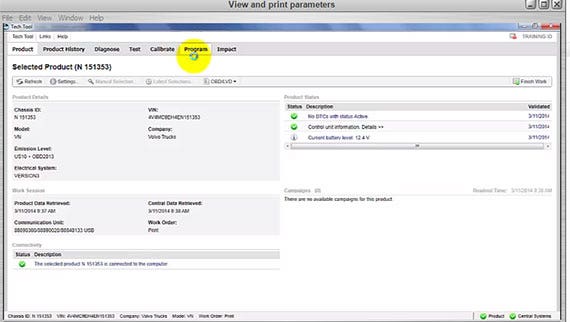

View and Print Parameters

When parameter values are requested by Body Builder Support to assist with programming parameter logic.

View and Print Parameters
Volvo Trucks

Request Assistance

Request

Request Custom Drawing

To request a PDF drawing or CAD file, please contact your dealer.

Find a Dealer

News & Events

See all News & Events
News article placeholder image

10/23/2019

Quick Reference: Vocational Parameters

Use this quick reference guide to open discussion with body builders and customers. The Volvo parameter offering is extensive and correctly programming the truck will make its operation safer and more efficient. Premium Tech Tool is required to adjust parameter logic.

Read more
body-builder-connectors

3/29/2019

Body Builder Connectors and Lighting Interface

Quick Reference Guide for Body Builder Connectors, Pinouts, Mating Connector Housing Assembly and Terminal Part Numbers. Also end of frame Lighting Connector information provided.

Read more
air pipping

3/29/2019

Air Line Fitting

If you are in need of removing an air tank to gain clearance for the purpose of installing a frame component, the new fittings require an air line fitting release tool. The release tools are available to order from your Volvo dealer and are available in plastic (kit part number 85152447) or metal (kit part number 88800414). To assist you with the new air line fittings, attached is a Design and Function document of the new air tubing and fittings.

Read more

Frequently Asked Questions

What is the minimum RPM I should operate my PTO, so that my vehicle will perform Regeneration during PTO mode?
Regeneration in PTO Mode - when a vehicle is being operated in PTO mode and a diesel particulate filter (DPF) regeneration is commanded, the engine must be run at a speed above the minimum speeds listed in the tables in Body Builder Manual, Section 9, Table of Contents / Regeneration in PTO Mode. The minimum speed setting can be affected by ambient temperature and/or altitude.
Can the I-Shift change gears while transmission mounted PTO is active?
When a I-Shift mounted PTO is engaged, it is only possible to move the truck in one gear (1st, 2nd, or 3rd) – the transmission will not shift gears when the PTO is active. The transmission will not disengage the PTO once it is turned on and recognized by the VECU or TECU via the factory-installed PTO switch.
On Volvo I-Shift, with PTO engaged while in neutral, and then selecting Drive the PTO stops turning. Why?
Remember that the I-Shift is an automated manual transmission with a clutch. With the PTO engaged while in neutral, when selecting Drive, the clutch is released, then the transmission shifts into gear. When the driver takes his foot off the brake pedal and presses the throttle pedal the clutch will reengage and the PTO will start to turn again. The transmission will not shift gears and driver is limited to about 6 MPH.
